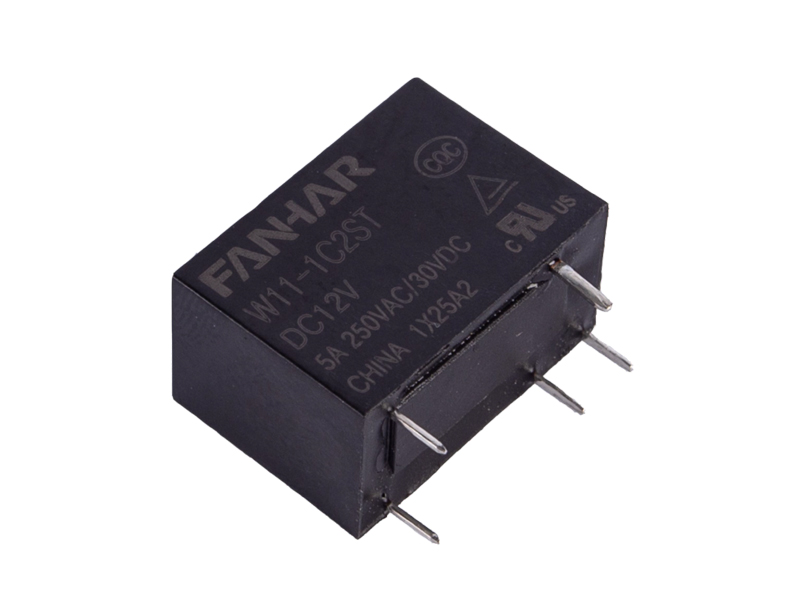

power relay
● 10a switching capability
● contact arrangement:1a､1c

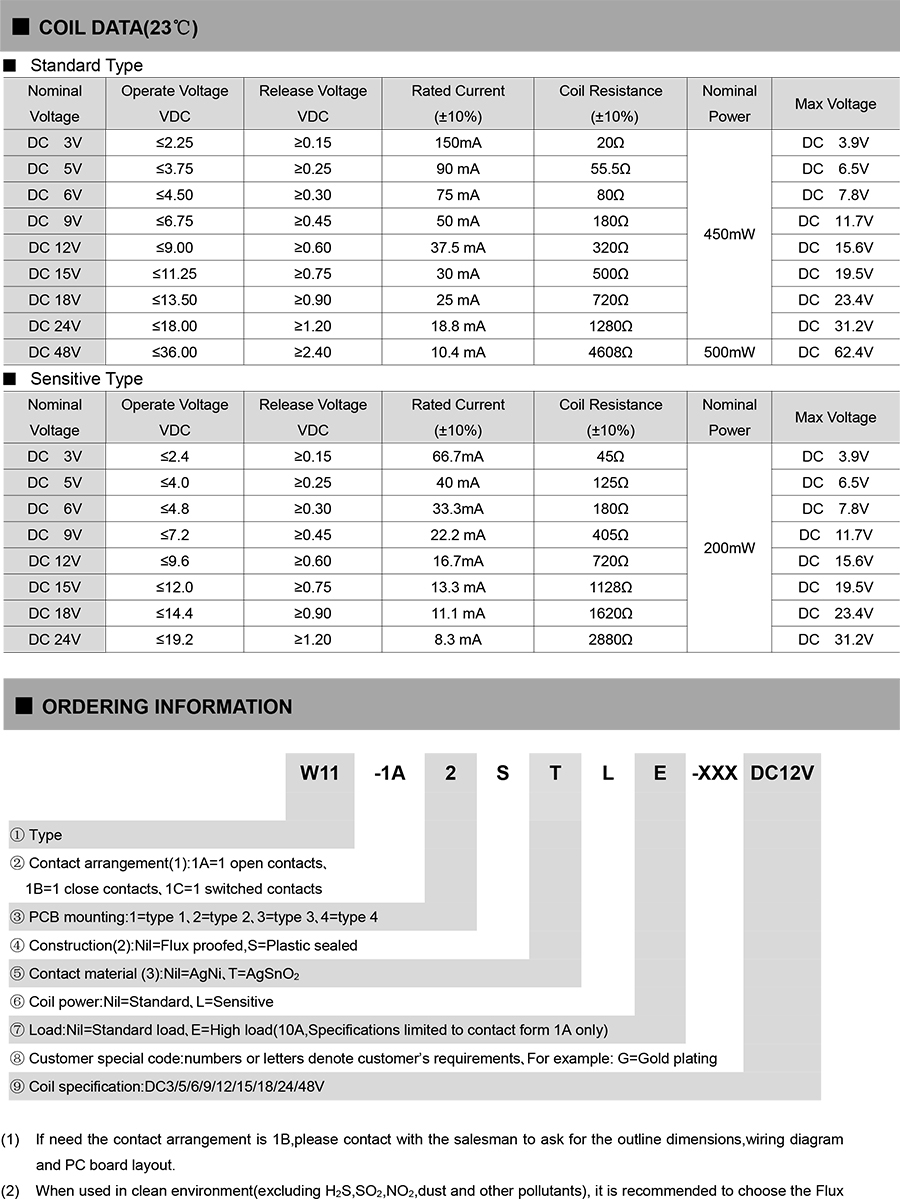

● provide high sensitivity type of products, coil power consumption is 200mw
● breakdown voltage (between coil and contacts):5kv
● creepage distance and air distance are greater than10mm
● we can provide the product with ambient temperature is 105℃
● ul insulation system:class f
● environmental friendly product(rohs compliant)

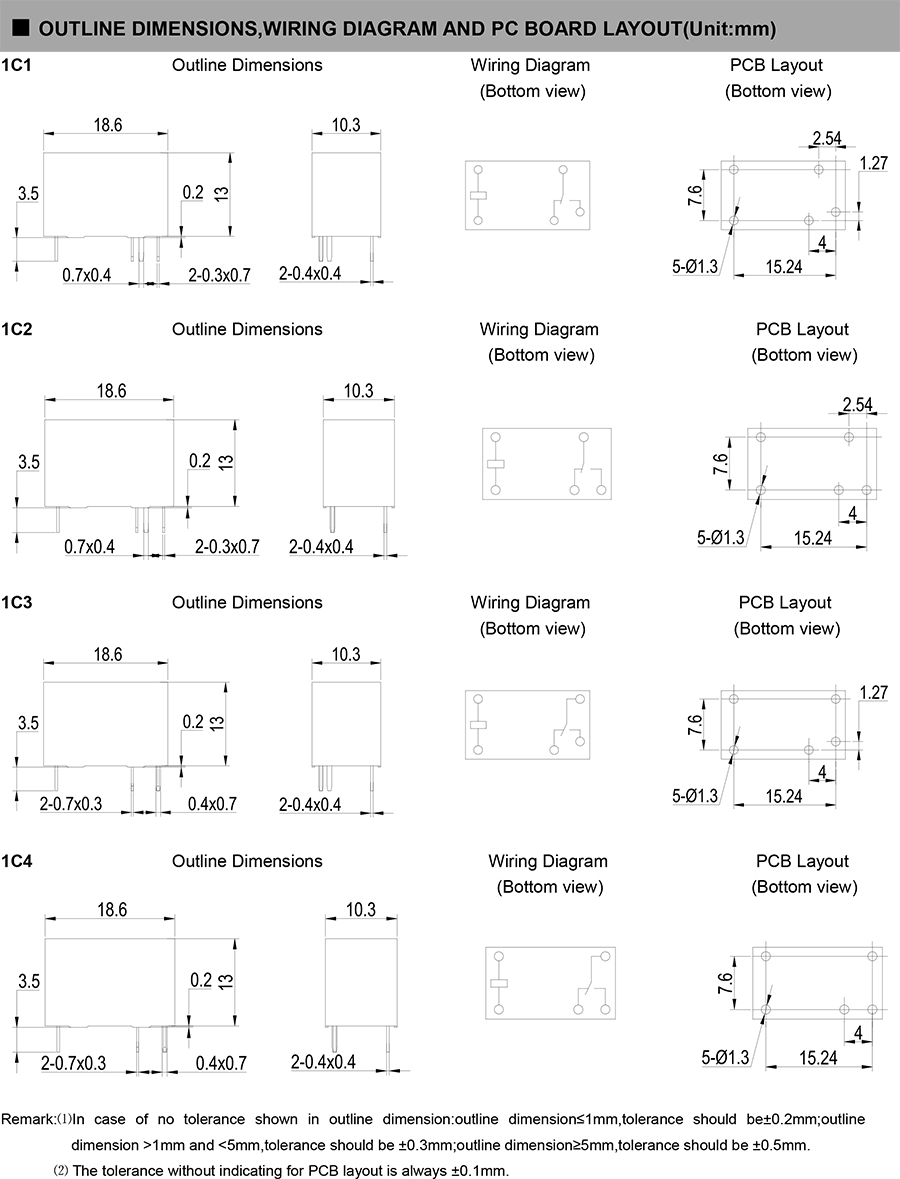

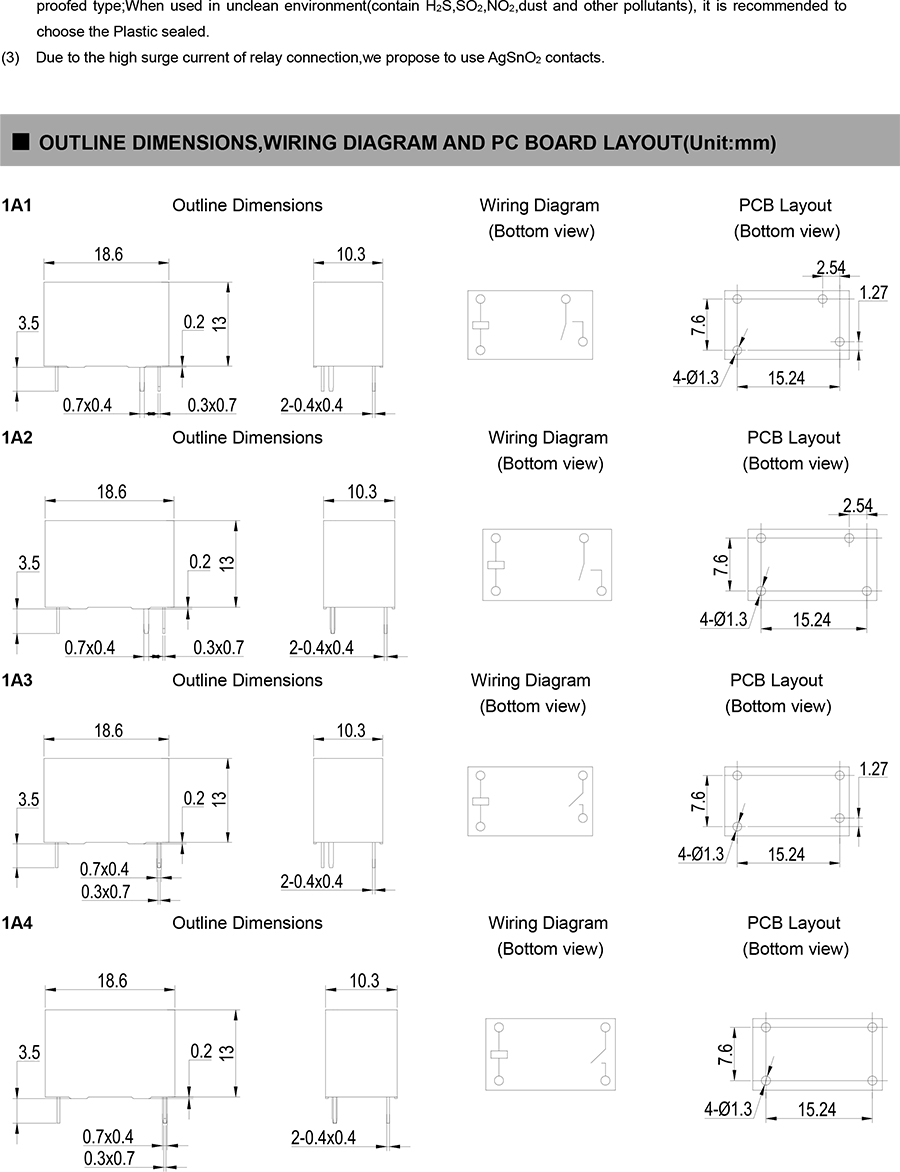

● outline dimensions:(18.6×10.3×13.0)mm
● main application:industrial control, smart home, 5g communication power
